EVHV Switching & Safety

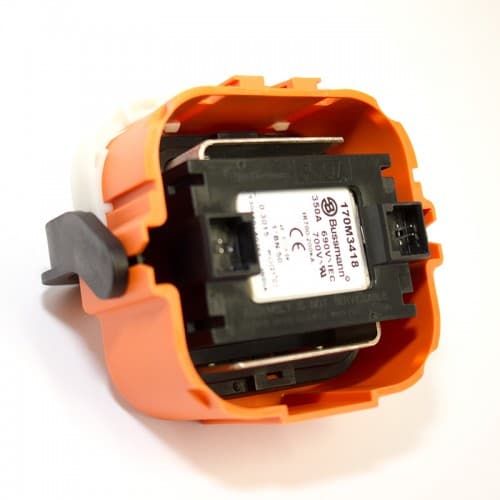

TE MSD 350A Plug assembly
SKU: FEV-C-0040
MSD (Manual Service Disconnect) shunt plug assembly disconnects the power and makes vehicle safe for maintenance, repair or emergency procedures. AMP+ Manual Service Disconnect shunt plug assembly makes use of a two stage lever to open the HVIL circuit prior to separation of HV contacts. This enables disconnection of internal HV battery pack and protects the battery pack HV cables from short circuiting. The solution is tool-free and all HV conducting surfaces on the receptacle assembly are finger proof and touch safe. The design is scalable and available in different fuse ratings. Use in conjunction with MSD (Manual Service Disconnect) 350A shunt receptacle assembly. Manufactured by Tyco Electronics Corporation.
Supply details
Confirmed by quote
Brand
TE
Order quantity
Confirmed by quote
Unit
PCS
Required Quantity
Quantity confirmed by quotePCS
Quote-ready details
Help us verify the exact part
In your RFQ, tell us whether you need the same component, its mating part, housing and contacts, or a complete terminated cable assembly.
- IdentificationBrand, part number, all markings, plus photos of the mating face, wire-entry side, latch, and keying.
- ApplicationSystem voltage, continuous and peak current, and relevant cable length, coil voltage, sealing, or shielding requirements.
- Purchase scopeRequired quantity, destination country, and whether specified crimp tooling is available or a finished assembly is required.
Final matching and selection remain subject to manufacturer documentation, physical verification, and your system requirements.
- Export Shipping Options
- Documents Checked by Part Number
- Response Timing After Review
| Specification | Value |
|---|---|
| HVIL | Yes |
| Current Rating | 350A |
